CLASSIFICATION
C4H10-Isobutane (R600A)
Keywords:
Category:
Hydrocarbon Gas
Hotline:
C4H10-Isobutane (R600A)
Isobutane (R600a) is supplied as a liquid under its own vapour pressure in cylinders and in T50 ISO containers for international transport as well as road trailers and rail cars. It is widely used due to its low environmental impact and excellent thermodynamic performance and it is the refrigerant gas of choice in domestic and small commercial refrigerators. It also has applications as a heat transfer fluid in the geothermal industry.
Standard Specifications
|
Purity / Assay |
2.5 |
3.0 |
|
Nitrogen |
< 400 |
< 160 |
|
Oxygen |
< 100 |
< 40 |
|
Other Hydrocarbons |
< 4900 |
< 1000 |
|
Sulphur |
< 1 |
< 1 |
|
Moisture** |
< 5 |
< 4 |
|
Total Impurities |
< 5000 |
< 1000 |

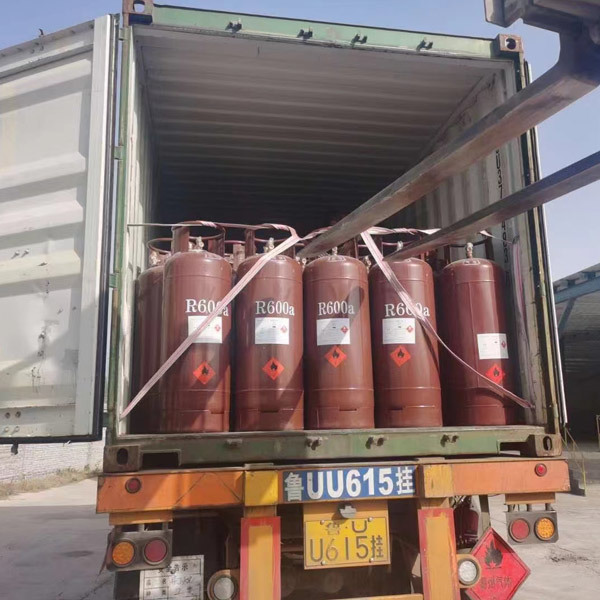

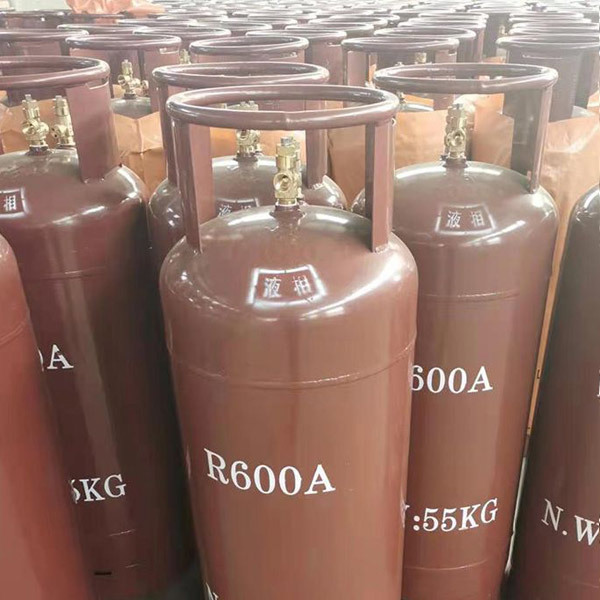

Standard Container Sizes and Fill Volumes
|
Container Information |
|
|
|
|
Type |
118L Cylinder |
800L Cylinder |
20' T50 ISO Container |
|
Contents |
50kg |
320kg |
11,450kg |
Technical Information
|
Technical Data |
|
Shipping Information |
|
|
Molecular Weight (g/mol) |
58.123 |
Shipping Name |
Isobutane |
|
Liquid Density (kg/m³) |
593.4 |
Hazard Class |
2.1 |
|
Gas Density (kg/m³) |
2.51 |
UN No. |
UN 1969 |
|
Boiling point (°C) |
-11.7 |
Hazard Label |
Flammable gas |
|
Specific Volume (m³/kg) |
0.406 |
CAS No. |
72-28-0 |
|
Vapour Pressure (bar.a @ 20°C) |
2.13 |
|
|
|
Valve Outlet |
Cylinder – CGA 510, T50 - ACME, MALE. 1 ¾” gas phase / 3 ¼” liquid phase |
||
