Micro Bulk
Micro Bulk is a small cryogenic liquid storage tank, is a new design gas storage transfer equipment with a more economical and convenient distribution and use design for industry, laboratory and medicine, which is more reliable, safer and economical. The general volume is 1-5m3, the pressure can reach 3.6mpa. It is characterized by no need to replace cylinders frequently, convenient operation, reduce liquid waste, save time, no weighing,It is used in cutting, welding, cryogenic laboratory, small hospitals etc.

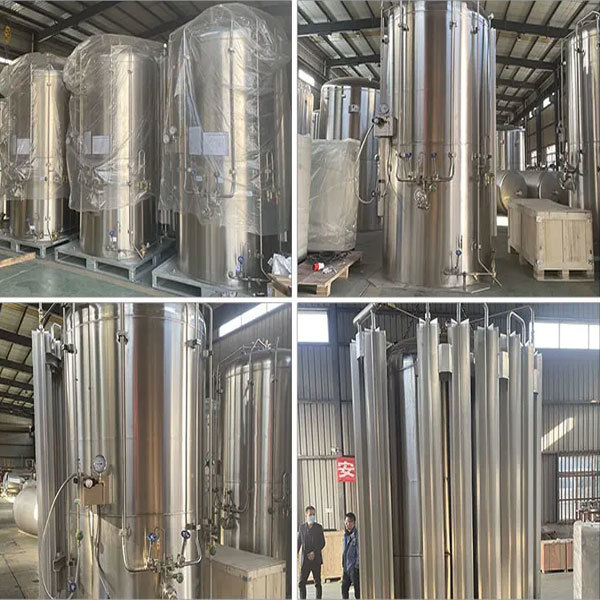

Microbulk tank description
The microbulk tank is a compact jacket-type vacuum multilayer insulation cryogenic pressure vessel used for storing and supplying cryogenic liquefied gases (liquid nitrogen, liquid oxygen and liquid argon, etc.)
1. Storage medium: LO2, LN2, LAr, LNG or LCO2
2. Working pressure: 0.5MPa ~ 3.0MPa, or as requested.
3. Geometric capacity: 1000Liters, 2000 liters, 3000liters, 4000 liters, 5000 liters etc.
Features and Benefits
1) Design compact: Centralized gas supply system on pallets skip: collect Storage tank, PBC, Vaporizer, and pipelines.
2) Quality Well: High vacuum multi-layer insulation and well designed structure, and no liquid loss.
3) Easy installation: can put anywhere you want on working site.
4)Easy transportation: Can lift hooks, or by forklift on movable base.
5)Easy Operation: All the data is shown on instrument, and can be adjusted according to actual situation of gas pressure regulation.
6) Easy Maintenance: CGA Connection, which is convenient to assemble and disassemble.
|
Model |
MB1000HP PB COIL |
MB1000VHP |
MB2000MP |
MB2000VHP |
MB3000MP |
MB3000VHP |
MB5000MP |
MB5000VHP |
|
|
Gross Volume |
|||||||||
|
|
：L |
1010 |
1010 |
2107 |
2107 |
3031 |
3031 |
5168 |
5168 |
|
|
：gal |
267 |
267 |
557 |
557 |
801 |
801 |
1365 |
1365 |
|
Net Volume |
|||||||||
|
|
：L |
960 |
929 |
2002 |
1938 |
2879 |
2789 |
4910 |
4755 |
|
|
：gal |
253 |
245 |
529 |
512 |
761 |
737 |
1297 |
1256 |
|
MAWP |
|||||||||
|
|
：MPa |
2.4 |
3.5 |
1.6 |
3.5 |
1.6 |
3.5 |
1.6 |
3.5 |
|
|
：psi |
350 |
500 |
230 |
500 |
230 |
500 |
230 |
500 |
|
Max. Pre-set Operating Pressure |
|||||||||
|
|
：MPa |
2 |
3.1 |
1 |
3.1 |
1 |
3.1 |
1 |
3.1 |
|
|
：psi |
300 |
450 |
150 |
450 |
150 |
450 |
150 |
450 |
|
Design Specification |
|||||||||
|
|
ASME |
ASME |
ASME |
ASME |
ASME |
ASME |
ASME |
ASME |
|
|
Gaseous Volume |
|||||||||
|
Oxygen |
：Nm3 |
766 |
742 |
1598 |
1548 |
2299 |
2226 |
3920 |
3796 |
|
|
：SCF |
27053 |
26199 |
56437 |
54655 |
81187 |
78623 |
138427 |
134056 |
|
Nitrogen |
：Nm3 |
617 |
597 |
1287 |
1246 |
1851 |
1793 |
3157 |
3057 |
|
|
：SCF |
21788 |
21100 |
45452 |
44017 |
65385 |
63320 |
111484 |
107963 |
|
Argon |
：Nm3 |
749 |
726 |
1563 |
1514 |
2249 |
2178 |
3834 |
3713 |
|
|
：SCF |
26464 |
25628 |
55207 |
53464 |
79417 |
76910 |
135411 |
131134 |
|
NER(Nitrogen) |
|||||||||
|
|
：%/Date |
0.7 |
0.7 |
0.6 |
0.6 |
0.5 |
0.5 |
0.4 |
0.4 |
|
Gas Delivery Rate |
|||||||||
|
|
：Nm3/H |
25 |
40 |
75 |
75 |
75 |
75 |
100 |
100 |
|
|
：SCFH |
883 |
1413 |
2649 |
2649 |
2649 |
2649 |
3532 |
3532 |
|
Dimensions |
|||||||||
|
Pallet Size |
：mm |
1250*1250 |
1250*1250 |
1500*1500 |
1500*1500 |
1700*1700 |
1700*1700 |
2100*2100 |
2100*2100 |
|
|
：inch |
49.21*49.21 |
49.21*49.21 |
59.05*59.05 |
59.05*59.05 |
66.92*66.92 |
66.92*66.92 |
82.67*82.67 |
82.67*82.67 |
|
Tank Diameter |
：mm |
1058 |
1058 |
1308 |
1308 |
1508 |
1508 |
1910 |
1910 |
|
|
：inch |
41.65 |
41.65 |
51.50 |
51.50 |
59.37 |
59.37 |
75.20 |
75.20 |
|
Overall Height |
：mm |
2225 |
2225 |
3060 |
3060 |
3160 |
3160 |
3150 |
3150 |
|
|
：inch |
87.60 |
87.60 |
120.47 |
120.47 |
124.41 |
124.41 |
124.02 |
124.02 |
|
Tare Weight |
：kg |
750 |
800 |
1170 |
1490 |
1570 |
2000 |
2613 |
3165 |
|
|
：lbs |
1653 |
1764 |
2579 |
3285 |
3461 |
4409 |
5761 |
6978 |
