C3H8-Propane (R290)
Keywords:
Category:
Hydrocarbon Gas
Hotline:
C3H8-Propane (R290)
Standard purities are produced by purfication of a standard refinery propane stream. Higher purities of propane are produced by direct hydrogenation of propylene at high temperature in the presence of a catalyst and is then purified using molecular sieve and fractional distillation.
Standard Specifications:
|
Purity / Assay |
2.5 |
3.5 |
4.0 |
|
Nitrogen |
< 400 |
< 30 |
< 10 |
|
Oxygen |
< 100 |
< 10 |
< 2 |
|
Carbon dioxide |
< 100 |
< 10 |
< 2 |
|
Propylene |
< 400 |
< 50 |
< 10 |
|
Other Hydrocarbons |
< 4000 |
< 400 |
< 80 |
|
Moisture** |
< 5 |
< 5 |
< 3 |
|
Total Impurities |
< 5000 |
< 500 |
< 100 |
Please contact us if the specification you require is not shown above.

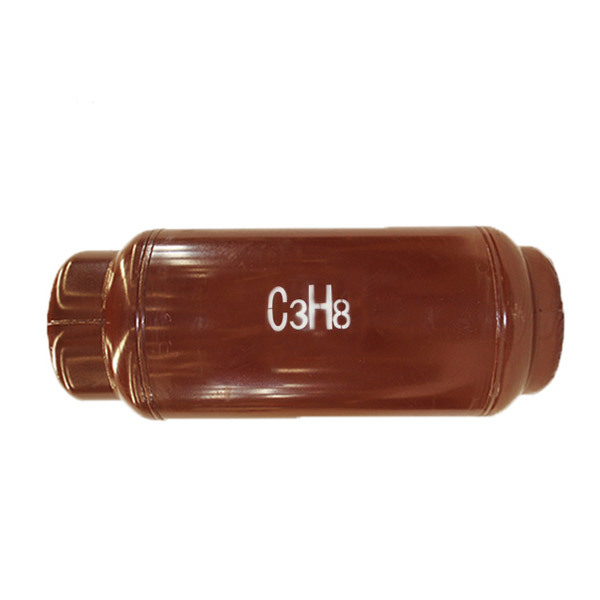

Standard Cylinder Sizes and Fill Volumes:
|
Cylinder Information |
|
|
Cylinder Size |
Fill Volume (kg) |
|
ISO Container |
10,600 |
|
800L |
328kg |
|
118L |
50kg |
* Dip tube available for liquid withdrawal
If you require a different container size please contact us.
Technical Information:
|
Technical Data |
|
Shipping Information |
|
|
Molecular Weight (g/mol) |
44.096 |
Shipping Name |
Propane |
|
Liquid Density (kg/m³) |
582 |
Hazard Class |
2.1 |
|
Gas Density (kg/m³) |
1.91 |
UN No. |
UN 1978 |
|
Boiling point (°C) |
-42.1 |
Hazard Label |
Flammable gas |
|
Specific Volume (m³/kg) |
0.543 |
CAS No. |
74-96-6 |
|
Vapour Pressure (bar.a @ 20°C) |
8.7 |
|
|
|
Valve Outlet |
CGA 510 / BS 4 |
|
|
