CLASSIFICATION
C3H6-Propylene (R1270)
Keywords:
Category:
Hydrocarbon Gas
Hotline:
C3H6-Propylene (R1270)

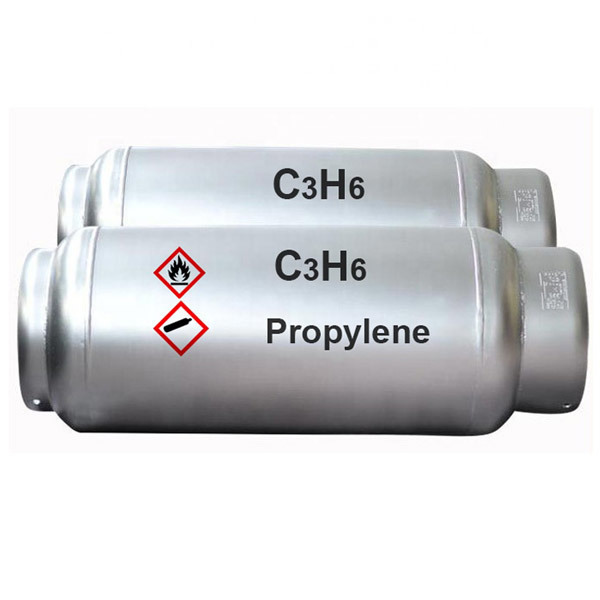

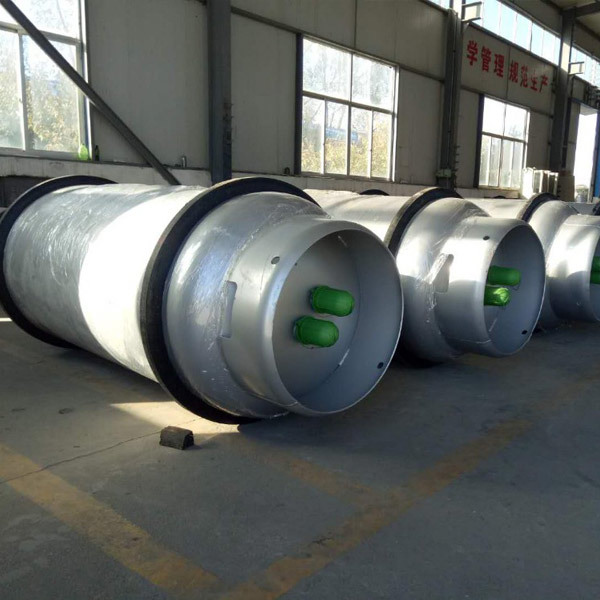

Propylene (R1270) is supplied as a liquid under its own vapour pressure in cylinders and in T50 ISO containers for international transport as well as road trailers and rail cars. It is generally used in commercial and industrial refrigeration applications such as LNG liquefaction and is a replacement for R22 and R502.
Standard Specifications:
|
Purity / Assay |
N2.5 |
|
Propylene |
> 99.5% |
|
Propane |
< 0.4% |
|
Ethane |
< 500ppm |
|
Ethylene |
< 100ppm |
|
Iso + n-Butane |
< 500ppm |
|
Methyl Acetylene |
< 3ppm |
|
Iso + n-Pentane |
< 10ppm |
|
Propadiene |
< 5ppm |
|
Butadiene |
< 50ppm |
|
Incondensable + O2+CO2+N2 |
< 200ppm |
|
Hexanes |
< 20ppm |
|
Moisture |
< 10ppm |
Standard Container Sizes and Fill Volumes:
|
Container Information |
|
|
|
|
|
Type |
118L Cylinder |
800L Cylinder |
20' T50 tank |
40' T50 tank |
|
Contents |
50kg |
340kg |
10,500kg |
17,150kg |
Technical Information:
|
Technical Data |
|
Shipping Information |
|
|
Molecular Weight (g/mol) |
42.08 |
Shipping Name |
Propene |
|
Liquid Density (kg/m³) |
613.9 |
Hazard Class |
2.1 |
|
Gas Density (kg/m³) |
1.81 |
UN No. |
UN 1077 |
|
Boiling point (°C) |
-48.8 |
Hazard Label |
Flammable gas |
|
Specific Volume (m³/kg) |
0.587 |
CAS No. |
115-07-1 |
|
Vapour Pressure (bar.a @ 20°C) |
10.3 |
|
|
|
Valve Outlet |
Cylinder – CGA 510, T50 - ACME, MALE. 1 ¾” gas phase / 3 ¼” liquid phase |
||
