CO2-Liquid Carbon Dioxide
Liquid carbon dioxide is carbon dioxide gas that is highly compressed and cooled to a liquid form. Carbon dioxide exists as a liquid below the critical temperature of 31C and above the triple point with a temperature of -56.6 C and 4.18 bar.
Generally, CO2 gas is transported, stored and handled in liquid form, either in cylinders or non-insulated storage tanks at a pressure of 45-65 bar or refrigerated tanks at temperatures between -35 C and -15 C and pressures of 12 to 25 bar. Demand for liquid CO2 in various industries has grown tremendously. This reflects the diverse applications of this gas.
Spetification
|
Beverage grade |
|||
|
Total volatile Hydrocarbon |
≦0.01 |
Purity |
99.995 |
|
Benzene |
≦0.003 |
H2O |
6.0 |
|
Acetaldehyde |
≦0.01 |
Oil |
≦0.5 |
|
Total sulfur |
≦0.005 |
Oxygen |
3.4 |
|
Sulfide dioxide |
≦0.005 |
Odour、taste&facade |
/ |
|
Carbon Monoxide |
≦2.0 |
Smell |
/ |
|
Nitric oxide & nitrogen diode |
≦1.0 |
Non-volatile residue |
≦0.5 |
|
5.0 N high purity CO2 |
|
|
CO2 |
≥99.999% |
|
H2 |
≦0.5ppm |
|
O2 |
≦1ppm |
|
N2 |
≦3ppm |
|
CO |
≦0.5ppm |
|
THC |
≦2.0ppm |
|
H2O |
≦3ppm |

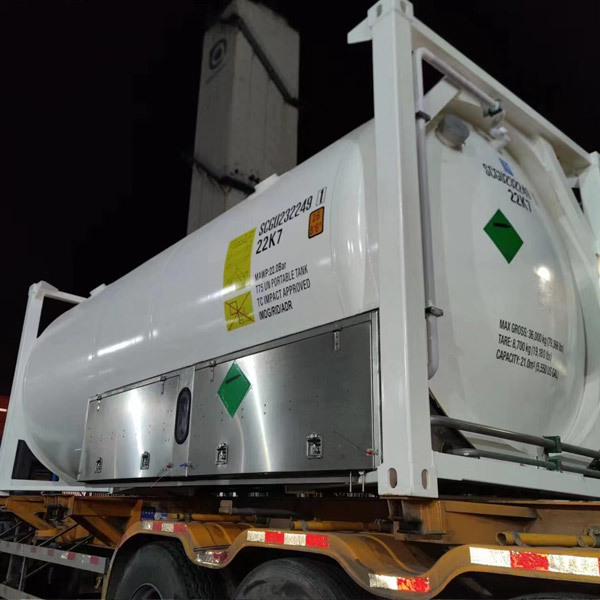

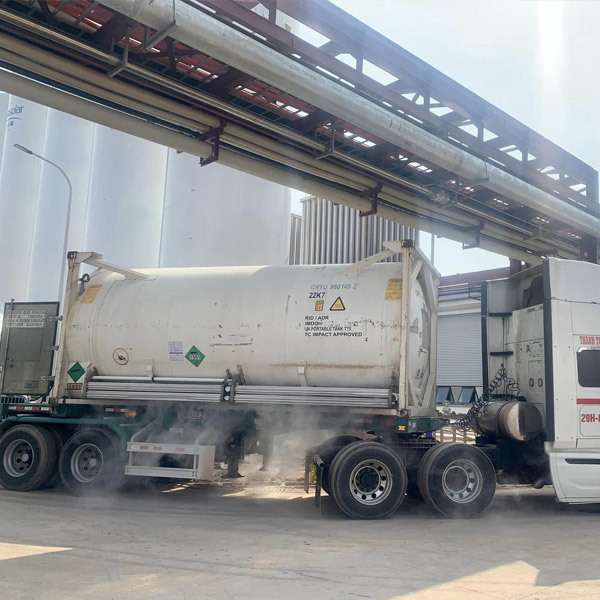

Transportation reference
|
ISO TYPE |
T75 |
|
WORKING PRESSURE |
18-24BAR |
|
TARE WEIGHT |
7750-12000KG |
|
WATER CAPACIT |
20100-21700L |
|
LOADING WEIGHT |
18000-21500KG |
|
TOTAL WEIGHT |
28000-33000KG |
Technical Information
|
Technical Data |
|
Shipping Information |
|
|
Molecular Weight (g/mol) |
44.010 g/mol |
Shipping Name |
Carbon Dioxide, Refrigerated Liquid |
|
Liquid Density (kg/m³) |
1178.4 kg/m3 |
Hazard Class |
2.2 |
|
Gas Density (kg/m³) |
1.9763 kg/m3 |
UN No. |
UN 2187 |
|
Boiling point (°C) |
-78.5℃ |
Hazard Label |
nonflammable gases |
|
Specific Volume (m³/kg) |
|
CAS No. |
124-38-9 |
|
Vapour Pressure (bar.a @ 20°C) |
34.9054 bar |
|
|
|
Valve Outlet |
CGA 320/BS-3 |
|
|
