SF6-Sulfur Hexafluoride
Introduction to Sulfur Hexafluoride (SF₆) Gas
Sulfur hexafluoride (SF₆) is a colorless, odorless, non-toxic, and non-flammable synthetic gas composed of one sulfur atom and six fluorine atoms. It is chemically inert, thermally stable, and has exceptional dielectric and insulating properties, making it highly valuable in industrial and scientific applications.
Major Applications of SF₆ Gas
1. Electrical Industry (Primary Use – ~80% of SF₆ Consumption)
SF₆ is widely used in high-voltage electrical systems due to its superior arc-quenching and insulating properties:
-
Gas-Insulated Switchgear (GIS): Prevents electrical discharges in high-voltage substations.
-
Circuit Breakers: Extinguishes arcs in power transmission systems (up to 800 kV).
-
Transformers & Capacitors: Enhances insulation and cooling in compact electrical equipment.
2. Medical Applications
-
Ophthalmology (Retinal Surgery):
-
Used as a temporary tamponade agent to reattach retinas.
-
Injected into the eye (SF₆-air mixture) to apply pressure on the retina.
-
Gradually replaced by C₃F₈ (perfluoropropane) due to shorter persistence.
-
3. Industrial & Scientific Uses
-
Leak Detection: Acts as a tracer gas in pipelines, HVAC systems, and semiconductor manufacturing.
-
Sound Insulation: Used in double-glazed windows for noise reduction (due to high density).
-
Plasma Etching: Used in semiconductor manufacturing for silicon wafer processing.
-
Particle Physics: Used in muon detectors and high-energy physics experiments.
4. Defense & Aerospace
-
Radar & Waveguide Systems: Used as an insulating and cooling medium in high-power radar systems.
-
Deuterium Fluoride (DF) Lasers: Used in military infrared countermeasure systems.
Ludong Gas Co supply commercial grade purity of 99.995% SF6 gas and also 99.999% gas for electonic industry;Package size according to customer requirements;
please contact us for additional information.

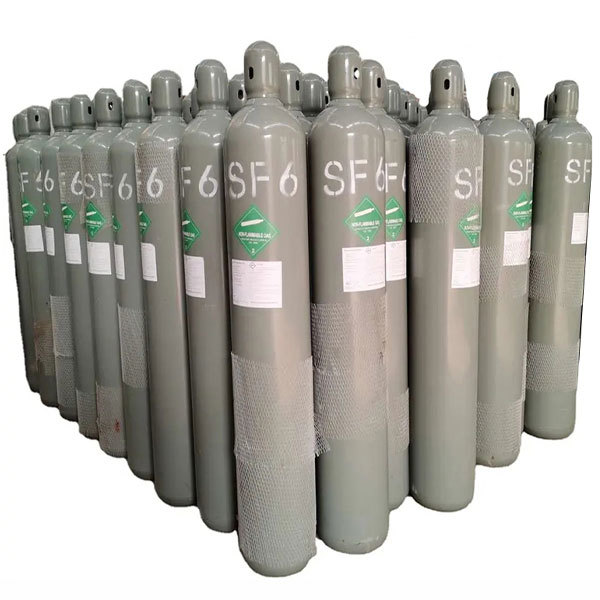

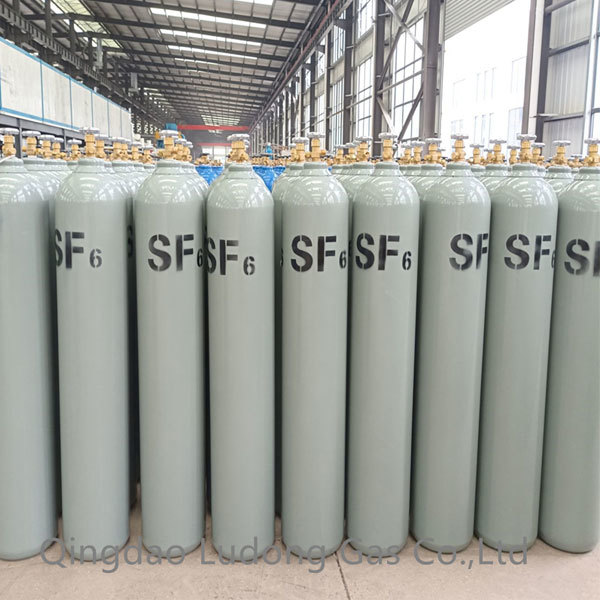

Supply options
◆ Cylinders
◆ Tube container
| Specifications | Company Standard | ||
| SF6 | ≥ 99.995% | ||
| Air | ≤ 10 ppm | ||
| CF4 | ≤ 2 ppm | ||
| C2F6 | ≤ 20 ppm | ||
| C3F8 | ≤ 5 ppm | ||
| Low Sulfide | Not Detected | ||
| H2O | ≤ 1 ppm | ||
| Acidity as HF | ≤ 0.1 ppm | ||
| Hydrolysable Fluor ides as HF | ≤ 0.3 ppm | ||
| Mineral Oil | ≤ 1 ppm |
Package
|
Cylinder Specifications |
Contents |
|
|
Cylinder Capacity |
Valve |
Weight |
|
40L |
CGA 590 / QF-2 |
50 kgs |
|
47L |
CGA 590 / QF-2 |
58 kgs |
|
50L |
CGA 590 / QF-2 |
62 kgs |
|
500L |
CGA 590 / QF-2 |
625 kgs |
